Hot Dawg Operation
There is a 100 VAC relay inside the Hot Dawg that is activated by the Hot Dawg propeller Fan. When the propeller is activated by the control board, the relay is activated which switches power to the Fan Jet.

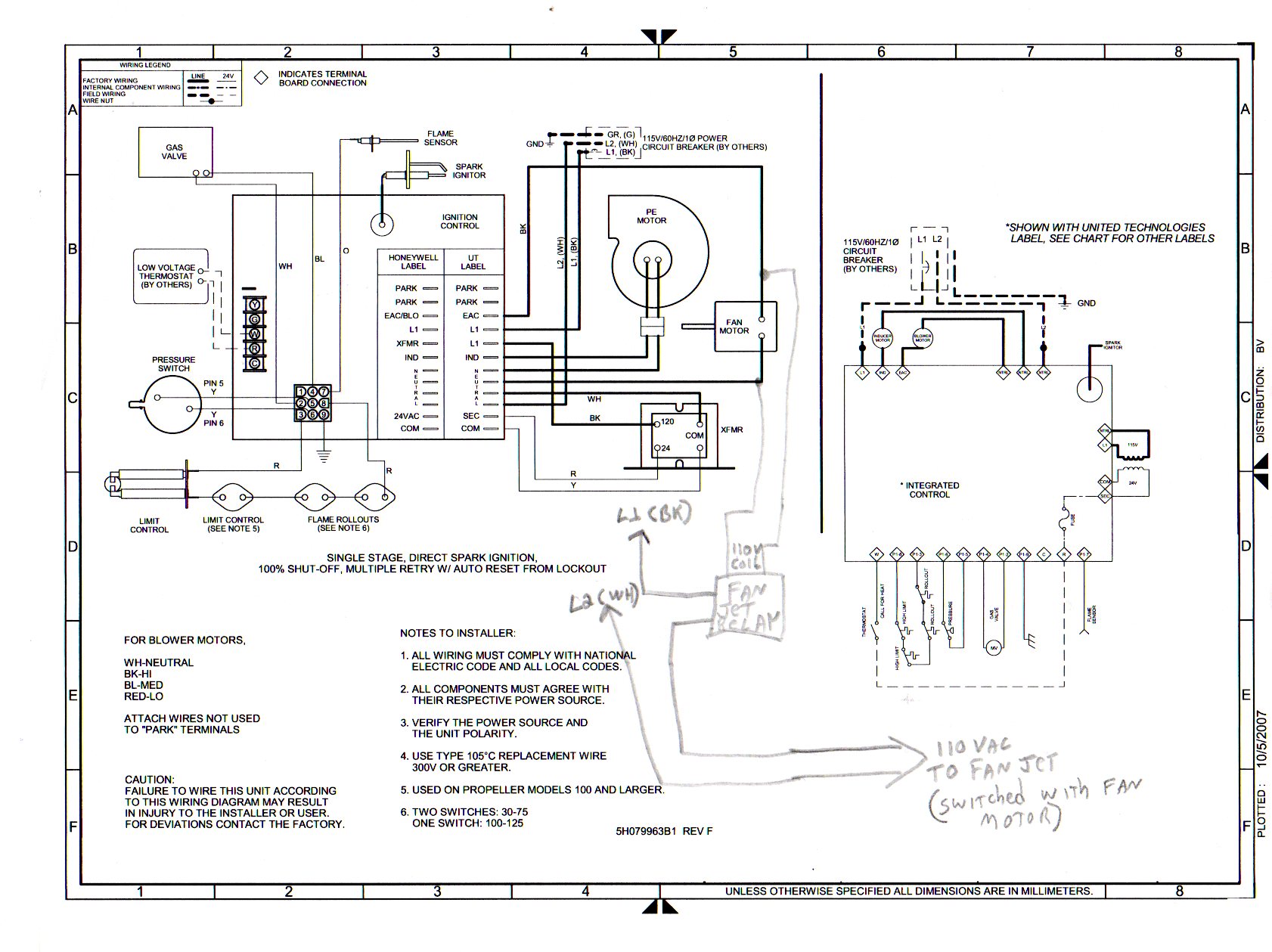

Hot Dawg Heater Diagram
