Thermostat Terminal Box

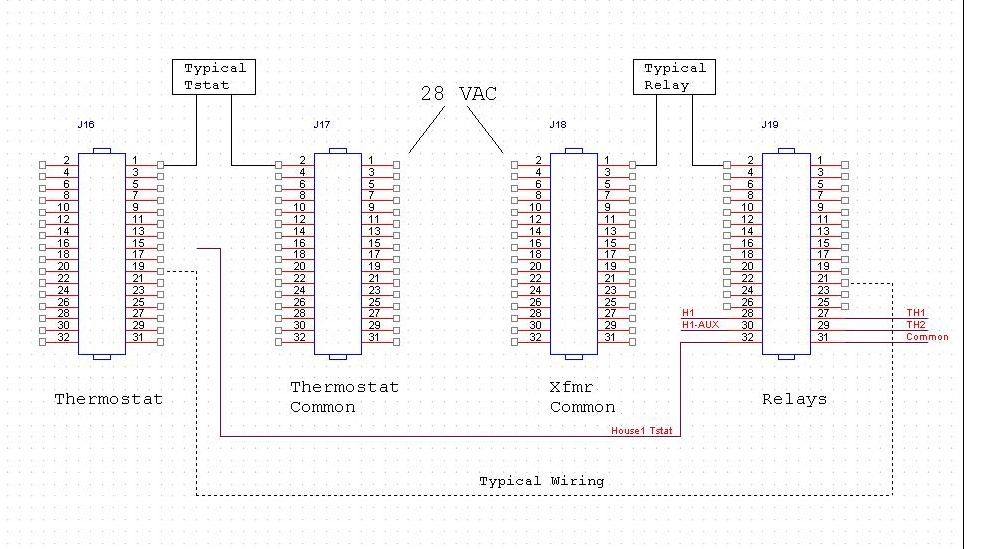

This is the box over the entry doorway. The strategy is to hook one thermostat from the leftmost terminal strip to a relay on the rightmost terminal strip.
On the lower right is the three wire connection to LOGE for house 1 intelligent heater selection based on temperature.
