info:atmel_icsp_jtag_wiring
Table of Contents
10 pin ISP
ATmega128 ISP
The Atmega128 maps the PDI and PDO CPU pins to MOSI and MISO of the ISP instead of using MOSI and MISO on the CPU. This is an important departure from standard ISP. Therefore, where the above 10 pin ISP connector shows MOSI and MISO, substitute PDI and PDO.
6 pin ISP Wiring

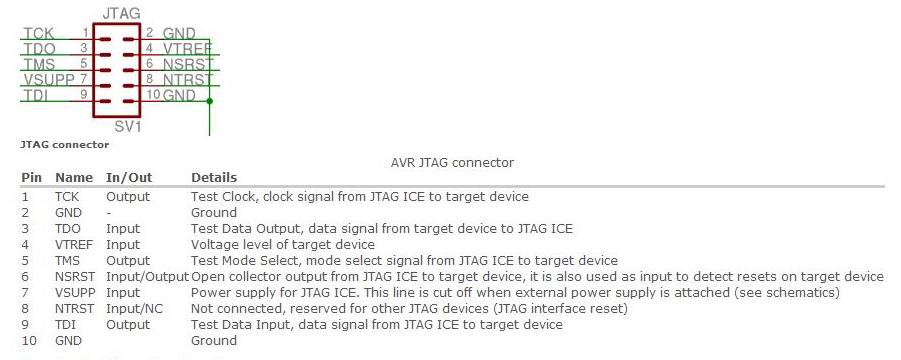

10 pin JTAG

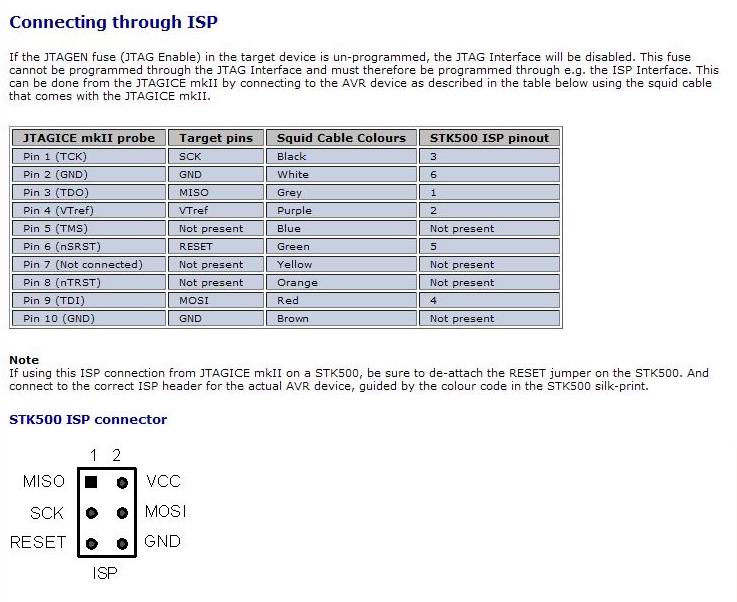

Squid Cable wiring
