AVR32 LCD
interfacing
The AP7000 version of the AVR32 family has a built in LCD controller but it requires a BGA which then presumes an 8 layer board. In order to simplify the electronics, this approach will use a UC32B as a timing generator in software.

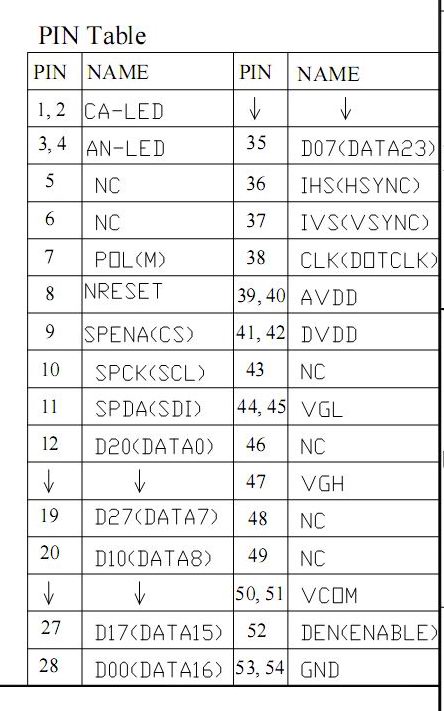

First, the LCD pinouts. This is the Sparkfun noname TFT LCD:
