Controlling an iPod with an Atmega32

Introduction

Have you ever imagined, “What does that cable I plug into my iPod every day actually do, and how do I take advantage of it for myself?” We did too, and that's what we aimed to do with our 476 project. The iPod is, of course, the popular digital music player developed by Apple. The heart of the project is to use the Mega32 microcontroller to transmit and receive commands from the iPod using the built-in Dock Connector, as opposed to cracking the iPod open and wiring it up. The Dock Connector is the little port at the bottom of the iPod that you would normally connect a white USB or FireWire sync cable into. Commands that are currently implemented include play, stop, fast forward and other basic commands that allow the user to enjoy music from the iPod, as well as the ability to display the current track's Title, Artist, and Album on an external LCD display.

This document is written for, primarily, the 476 graders! Just as importantly though, this document is intended for future 476 classes looking for interesting project ideas to tackle, because as far as we could tell, no one had attempted a project dealing with the iPod before. This document is also intended for those searching on the Internet for help on hacking their iPod. High-Level Design

At first we were worried about the feasibility of the project. We had decided early on that we wanted a project with obvious user feedback. After speaking to Bruce Land about the concept of an iPod dock, we decided that it would be our final project – what is more obvious than music starting or stopping?

A huge amount of our time involved researching the iPod communication protocol. The iPod's communication protocol through the Dock Connector is not actually publicly available from Apple. However, thanks to the reverse engineering efforts by many hobbyists, there is a lot of information about the protocol (termed the “Apple Accessory Protocol”) available on the Internet.

It is possible that the protocol isn't public due to the “Made for iPod” licensing program, which lets accessory makers in the “iPod ecosystem” connect to the iPod and display certain logos on their packaging after licensing. This could present certain legal issues, as it may be considered some form of protected intellectual property. However, as the protocol has been obtained through reverse engineering methods and not through a breach of contract, we do not anticipate this to be a big factor. Additionally, this is only an educational exercise and not in any way intended to be a commercially viable product.

The structure of our project is to have the Atmel Mega32 controller talk to the iPod in both sending and receive mode through the iPod's Dock Connector. We would send commands over the serial pins on the Mega32 and receive on the appropriate iPod pins as well. We can verify that the commands worked by simply observing the iPod and checking to see that the iPod responded appropriately, e.g. with a volume change, skipped track, etc.

The only relevant standards that we use are 8-N-1 serial communication for talking to the iPod. The actual Apple Accessory Protocol is an Apple creation, so not quite a “standard” in a usual sense. Otherwise, we do not make any use of any other standards, such as IEEE or ISO standards. The iPod sends out responses for strings in ASCII format.

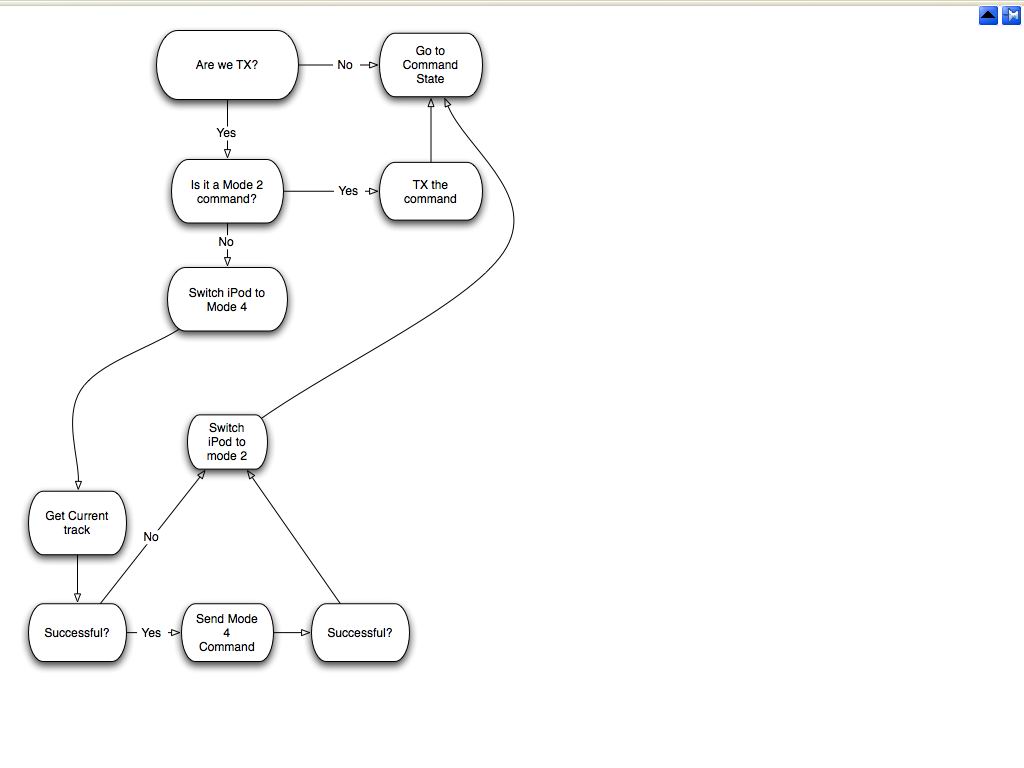

State Machine diagram

Research

A large amount of work went into determining whether this idea was actually feasible. No one appears to have made any similar efforts in 476 final projects before, and though there is a similar idea in ECE 313, that course was designed around a standard CD player and controlled the player by shorting the buttons.

We initially found the iPod Dock Connector pin-out, which is available from pinouts.ru After that, we eventually found the Apple Accessory Protocol, which is detailed best on the iPod Linux wiki.
Important Pins on the iPod

It's important to note which pins are the receive and transmit pins. On the pinouts.ru page, pin 13 is “Serial RxD,” which means serial receive from the iPod's point of view. Mixing it up could confuse you unnecessarily for a few hours.

Once we had a pinout and what looked like usable, if unofficial, documentation of the protocol, we started looking at actual connectivity to the iPod. There were a few efforts done by other people to create their own docks, but these were not quite what we were looking for.

After a bit of searching, we managed to find a hobbyist's website that had the actual iPod connectors available for sale. Even better, they also had a custom PCB available for sale to break out all of the individual signals from each of the pins, which was very useful because the pins themselves are rather small.

A short while later, we ended up discovering a second source for our PCB, which cost about the same as the original source but came with the dock connector pre-soldered, which was very useful as it was probably going to be a better soldering job than we could hope to accomplish by ourselves. Additionally, unlike the other source, it would ship within the United States. Using First Class Mail, we received our component in about 2 days (shipped on Thursday from CO, received on Saturday).

Next, we had to determine what commands it is we wanted to implement. We decided that the basic control functions we're all familiar with - Play/Pause, Volume Up and Down, Skip Forward and Backward - must be implemented. We decided next that the “good to have” functions would be receiving data from the iPod and displaying it on the LCD screen, namely the current track's Title, Artist, and Album.

All of the control details can be reverse engineered using a breakout board with a pass-through connector (in other words, a female iPod connector) and a commercial accessory that implements the same feature. All you'd have to do is plug the accessory into the pass-through connector, the pass-through into the iPod, and listen in on the serial pin.

It turns out that the iPod has a set of “modes” that it categorizes the functions in. The basic set of functions all belong in Mode 2, while the “good to have” receiving functions are all Mode 4. We also use functions from Mode 0 in order to change the iPod mode. This is important, because it changes how you expect to send and receive the data packets with the iPod.

Communication with the iPod is conducted over a serial protocol with a standard 8N1 setting at 19200 baud. This means that each packet has 10 bits. The packet starts with a low start bit, 8 bits (1 byte) of information, no parity, and a high stop bit. Each packet has a very ordered structure, which is as follows:

This table is modified slightly for clarity from the iPodLinux page on the subject. This is the case for other tables that appear in this section as well.

Incidentally, each 8-bit chunk of data in a serial packet is transmitted in Little Endian mode. The serial protocol also idles at VCC-high when not sending.

The command codes for the functions we have selected are shown below:

Mode 0 Commands

We were led to believe that Mode 2 commands needed to be sent 66 times per second until button release. However, from our experience this is not necessary. The command only needs to be sent once for the iPod to act upon it. Once the command is sent though, it is necessary to sent a button release command to indicate, well, the button's release. Otherwise, the iPod is going to assume that the button is being held and will do what it normally does in such situations. For example, pressing Play without a Button Release will turn your iPod off (a tidbit that confused us for a little bit).

The Mode 4 commands that we implemented seem basic, but as far as we could tell, very few accessories currently on the market take advantage of the mode 4 commands. As far as we know, only iPod car-kits use the mode 4 commands; these car kits scroll similar information on the dashboard.

Mode 4 commands require that the iPod be switched into Mode 4 using a Mode 0 command, when the iPod will display “OK to disconnect” and cut off interaction with the physical on-iPod controls until the dock connector is removed. With exception of volume control, the standard Mode 2 commands are still accepted, even though it is currently in Mode 4. Annoyingly, switching into Mode 4 also pauses the currently playing track.

The current position numbering is transmitted in 4 bytes, with each byte in Big Endian notation. Do not confuse this with the Little Endian transmit inside the individual bytes. The returned strings for Title, Artist, and Album are null terminated. Program Design

The state machine operates on a single assumption: the iPod talks back only when we want it to. If the iPod were to send a message when we were not expecting it, we would ignore the iPod. Additionally, we have helper functions that wait for input from the user which set flags to alert the state machine.

The state Command is the initial state of the microcontroller. In Command, we wait for the validcommand flag to be set from the button debouncer. This flag alerts the state machine to proceed to DecodeCommand. Otherwise, Command checks to see if the releaseflag has been set and whether the mode is set to 0x02. If it is, send the state machine to the button_release state.

The next state is DecodeCommand. DecodeCommand prepares the character array t_buffer to be transmitted through the UART. In this state, the two modes are differentiated – if the button pressed was of mode 0x02, the length of the command is typically shorter. If the command was of mode 0x04, the counter mode4flag is set to 1, which will alert the state machine that the iPod will be responding. The state proceeds to Send.

In Send, mode4flag is checked. All the mode 0x04 commands require that the iPod switch to a mode 4 state. We discovered that the iPod readily accepts both mode 0 and mode 2 commands, but will not recognize mode 0x04 commands. Thus, there is a sequence of commands to execute before sending a mode 4 command. This sequence is embodied in the mode4sequence counter. We will send commands based on what mode4sequence is. The first command in mode4sequence is a switch to mode 4 command. Then we wait several milliseconds before transmitting a “current song” command. We check to see if the command was successful (the iPod sends back the current track if the command was received, and sends back a failure if the command was incorrect). Finally, we send the mode 0x04 command that has the parameter currentsong to determine characteristics of the song. Again, we wait for the iPod to respond. The last command in mode4sequence is switching the iPod back to mode 2. We made this decision because in mode 2, we can use volume up and down. Additionally, the iPod screen is ugly when it enters mode 4. Whenever we wait for the iPod to respond, we will be in the “Receive” state. Upon a successful response, the state will return to the Send state. If the command was of mode 0x02, the state machine will transition to Command. To transmit a command, we call on the helper function puts_int().

We should only enter the Receive state if the command is of mode 4. Depending on what mode4sequence is, the state machine may re-enter the send state (switching iPod modes do not require responses), or the state machine waits for the Receive interrupt to set the r_ready flag. Upon receiving a buffer, the buffer is dissected and the iPod response is determined. Upon a successfully sending a command, the state machine changes mode4sequence, resets the failure counter and returns to the Send state to send the next command in the sequence. Upon a failure, the state machine increments the failure counter and returns to the send state without changing the sequence. This means that the command that failed will be sent again. Once the failure counter hits the failure threshold, or if we have exceeded our timeout limit, the state machine returns to the command state.

The button_release state should occur when the user has finished sending a mode 0x02 command. The t_buffer is set to the button release command, which is of mode 0x02, and is transmitted to the iPod. The state then proceeds to Send.
