Downing Place IP assignmennts

DeviceInternal IP Ext portnotes
Meistersinger 192.168.1.73 via port 2205 House environment
Garden irrigation 192.168.1.75 via 2202 TG Flower Timer II
Tower irrigation 192.168.1.76 via 2201Plant Room
Traviata192.168.1.882206 Main server
Blue Iris Server 192.168.1.88 via 2220 fixed IP
Enphase192.168.1.89 Enphase solar hub
Meister40192.168.1.91 Toms home sense server
Obi 200 192.168.1.104 Family Room closet
NCID/MQTT broker (Pi) 192.168.1.105 Family Room closet
NCID LED display 192.168.1.106 Family Room TV
Mote Pi Gateway 192.168.1.107 via 2200 Family Room closet?
OpenHab2 (Pi 3) 192.168.1.108 Family Room closet?
Mote to MQTT Gateway 192.168.1.109 fixed IP
Backyard CAM 192.168.1.124 fixed IP
Driveway CAM 192.168.1.120 via 2212 fixed IP
Sidedoor CAM 192.168.1.122 fixed IP
Backyard CAM 192.168.1.124 fixed IP
Lan to IR bridge 192.168.1.130 fixed IP
Toms Office Pi 192.168.1.xx DHCP Squeezer
Family Room Pi 192.168.1.xx DHCP Squeezer
Libbie's Plant Room Pi 192.168.1.xx DHCP Squeezer

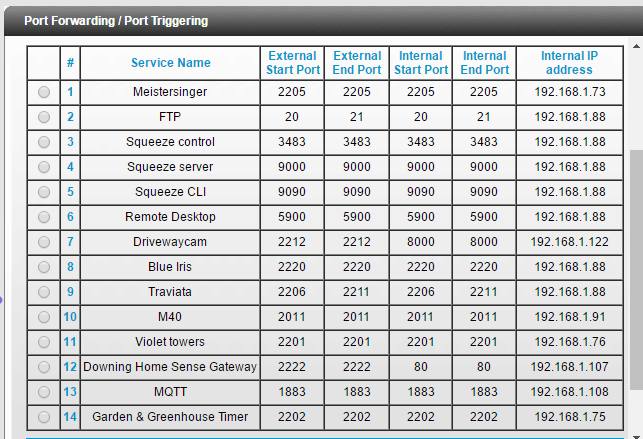

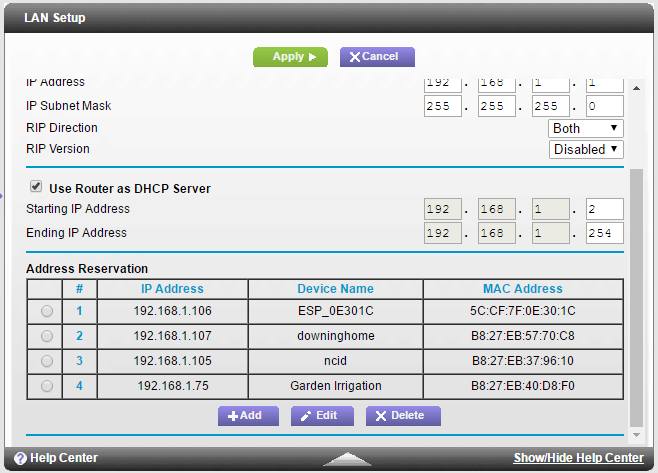

Port Forwarding & Router Mac to IP Mapping



Mac IP port Device
b8 27 eb 57 70 c8 192.168.1.75 2202 Outdoor H2O
b8 27 eb 37 96 10 192.168.1.105 NCID Server
5c cf 7f oe 30 1c 192.168.1.106 NCID Display
b8 27 eb be 9c 2c 192.168.1.107 80 Downing Home Sense

Downing Place Switches

Switches are distributed throughout the house to expand ethernet cables in various rooms. Wireless is not reliable enough for my tastes. In addition, security concerns of some of the data are alleviated when using wireless.

The Switches:

  • Garage Corner
    1. HIKVision Driveway Cam
    2. HIKVision SideDoor Cam
    3. HIKVision Backyard Cam
    4. Enphase Hub
    5. Septic controller (future)
  • Shop Back Corner:
    1. Porch Panasonic CAM
    2. TG Timer II Irrigation
    3. Meister 40
  • Office Closet (16 port)
    1. Plant Room Pi
    2. Garage Switch
    3. Meistersinger
    4. Toms Pi Player
    5. Libbie's Office
    6. Traviata
    7. Gilda Tower Watering
  • Office
    1. Manon
    2. Office Closet Switch
  • Downstairs Router Closet
    1. Obihai adapter (Google voice)
    2. Toms Office Switch
    3. Workshop Switch
    4. Downstairs Pi Player
    5. NCID Pi
  • Plant Room
    1. Gilda Tower timer
    2. Tower cam
