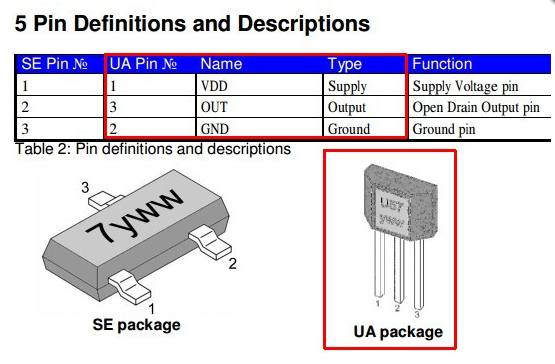

Hall Effect Sensor Wiring

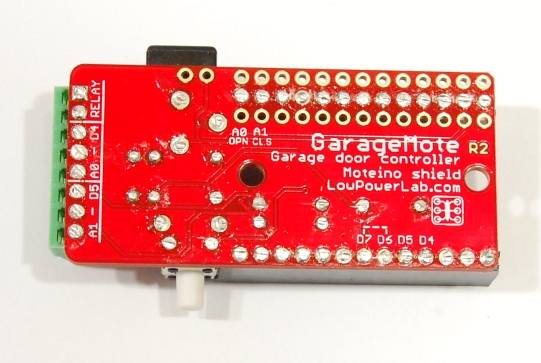

The cabling from the sensors to the PCB is a CAT-5 split open.
| Signal | Colors | PCB pin | function |
|---|---|---|---|
| Data | White with Orange stripe | 1 | hall-close |
| Gnd | Green with White strip | 2 | hall-close |
| Vdd | Orange with White stripe | 3 | hall-close |
| Data | White with Green stripe | 4 | hall-open |
| Gnd | Brown with White stripe | 5 | hall-open |
| Vdd | White with Brown stripe | 6 | hall-open |
| Relay | Blue | 7 | Relay |
| Relay | Blue | 8 | Relay |
