RJ45 Ethernet wiring

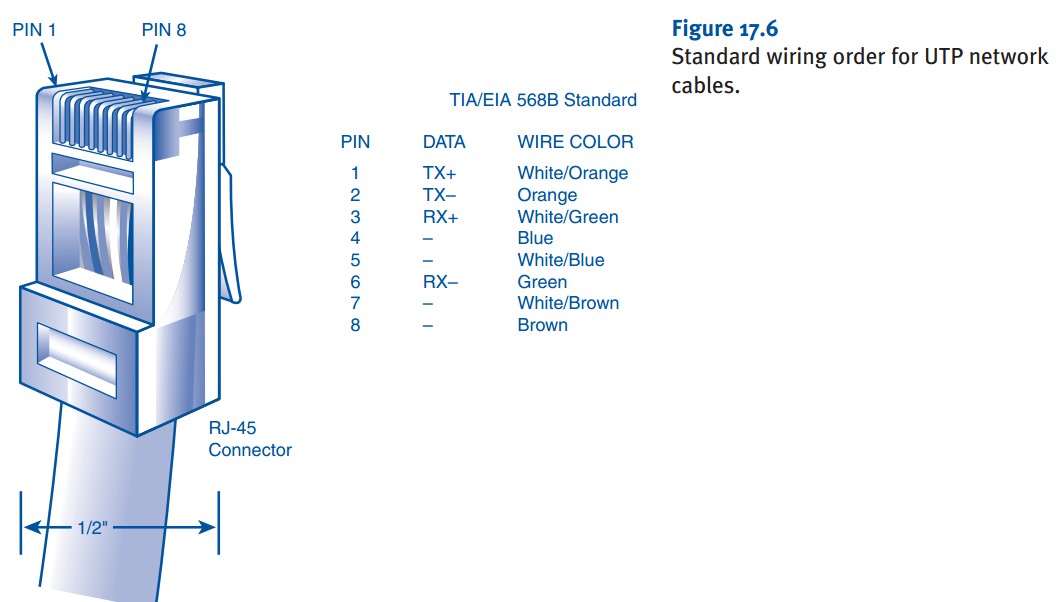

10BASE-T and 100BASE-TX only require two pairs to operate, pins 1 and 2 (transmit or TX), and pins 3 and 6 (receive or RX). Since 10BASE-T and 100BASE-TX need only two pairs and Category 5 cable has four pairs, it is possible, but not standard, to run two network connections (or a network connection and two phone lines) over a Cat 5 cable by using the normally unused pairs in these 10 and 100 Mbit/s configurations. This is not possible with 1000BASE-T since it requires all four pairs to operate, pins 1 and 2, 3 and 6 — as well as 4 and 5, 7 and 8.

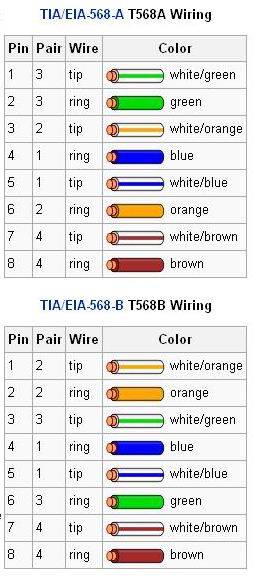

The first color scheme below or "T568A" is listed on another Life Bit's page as the Hobby Boards standard. The second or "T568B" is the more common wiring.
It is conventional to wire cables for 10 or 100 Mbit/s Ethernet to either the T568A or T568B standards. Since these standards differ only in that they swap the positions of the two pairs used for transmitting and receiving (TX/RX). A cable with TIA-568A wiring at one end and TIA-568B wiring at the other is referred to as a crossover cable. The terms used in the explanations of the 568 standards, tip and ring, refer to older communication technologies, and equate to the positive and negative parts of the connections.
