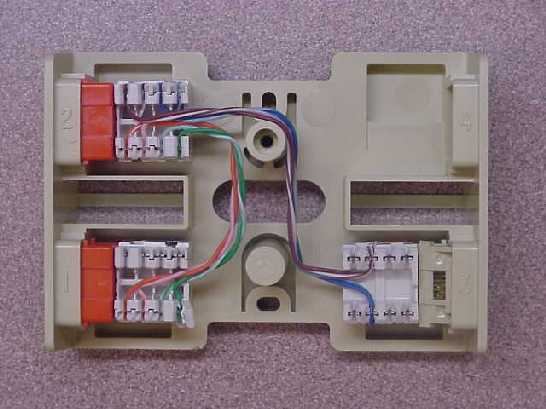

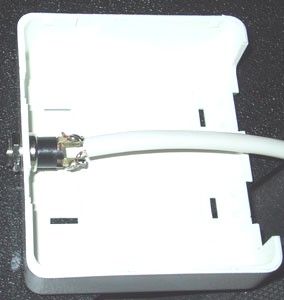

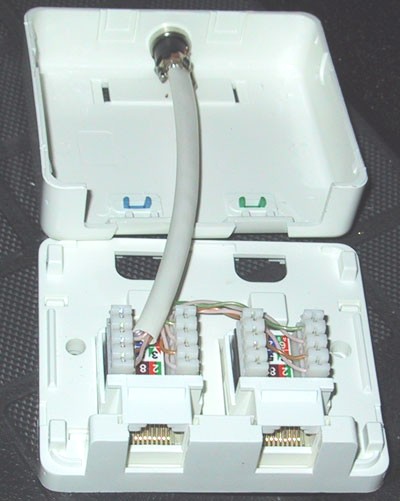

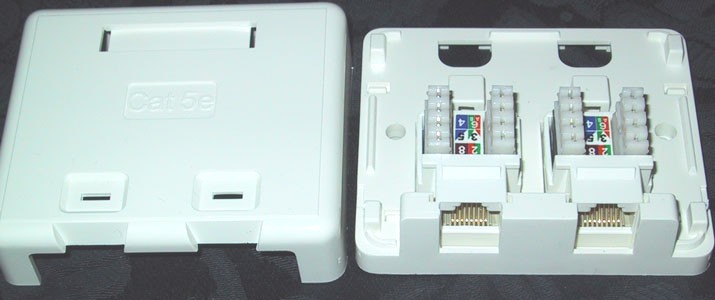

POE Wiring
More POE implementations

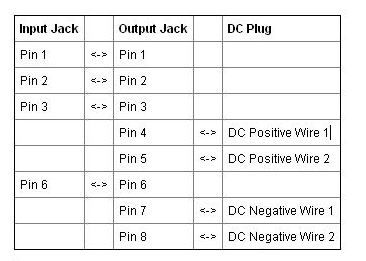

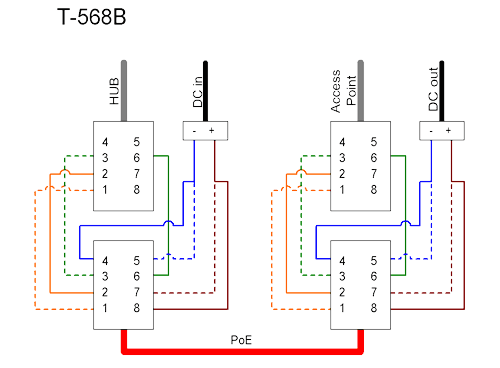

Wiring Diagram (Note: This diagram reflects the Cisco Wiring model (positive power on pairs 7,8, negative power on pairs 4,5). Intel, Symbol, and Orinoco use the opposite (positive power on pairs 4,5, negative power on pairs 7,8)
