Capacitive Soil Moisture Sensing
I picked up some inexpensive soil moisture monitors from Banggood. I found a really nice youtube tutorial where the guy hooks up an Arduino and an oled to sense moisture. The readings are scalled to 4 text values: dry, damp, moist and wet. This text is then displayed on an OLED.

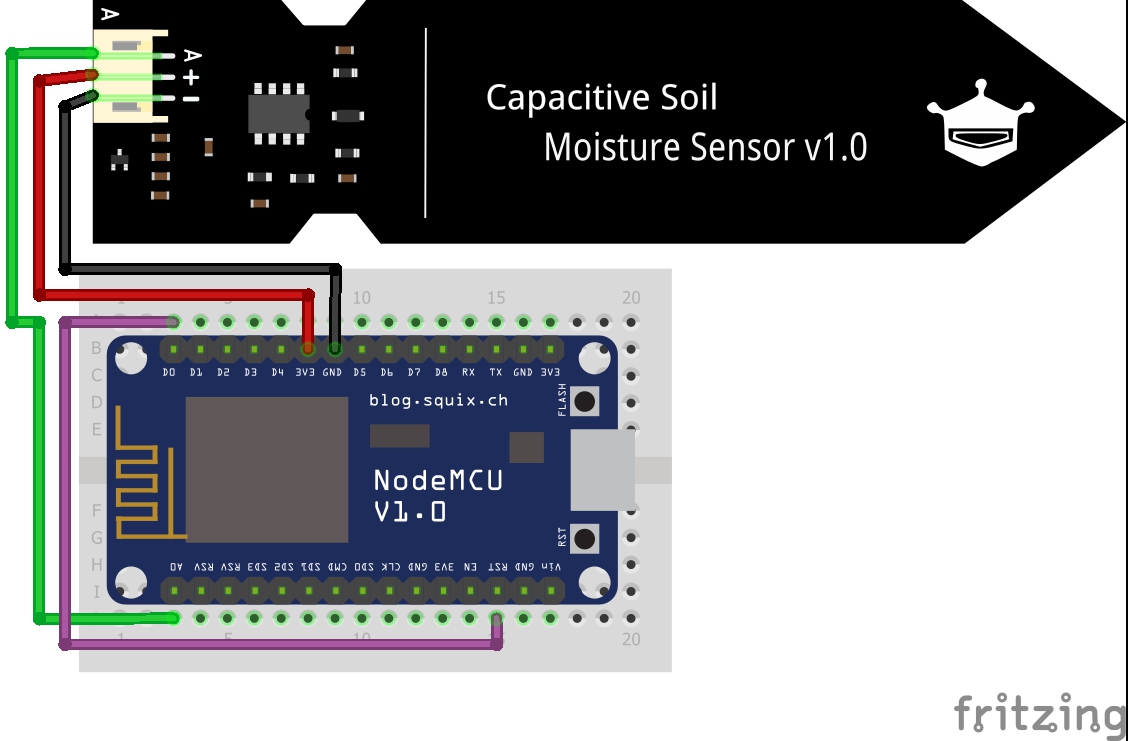

The sketch and schematic is in the Arduino Projects directory at:
_tgDocuments/Arduino-projects/Capacitive_Soil_moisture
The sample code is also here:
/********************************************************************* This is an example for reading the analog sensor output of a capacitive soil moisture probe and displaying the result on a 128x64 OLED display over the I2C bus. This example requires the SSD1306 display driver by Adafruit: https://github.com/adafruit/Adafruit_SSD1306 Video detailing the capacitive soil moisture measurement probe: https://youtu.be/pdGRs7GXBeE *********************************************************************/ #include <Wire.h> #include <Adafruit_SSD1306.h> #define OLED_RESET 4 Adafruit_SSD1306 display(OLED_RESET); // make sure the SSD1306 driver is configured for 64 line height #if (SSD1306_LCDHEIGHT != 64) #error("Height incorrect, please fix Adafruit_SSD1306.h!"); #endif const int wetProbe = 300; // wet readings are around 1.5v or analog input value ~300 const int dryProbe = 620; // dry readings are around 3v or analog input value ~620 // Analog Sensor Input Pin int sensorInput = 0; // soil probe is on analog input 0 // Variables int validSensorReading = 0; // valid sensor analog reading to record int sensorReading; // new sensor reading to evaluate and record or discard int sensorResult; // scaled sensor data [0..3] = [wet, damp, moist, dry] void setup() { Serial.begin(9600); // some debug messages will display sensor raw data display.begin(SSD1306_SWITCHCAPVCC, 0x3C); // initialize with the I2C address of the display display.clearDisplay(); // clear the display buffer } void loop() { sensorReading = analogRead(sensorInput); if (abs(validSensorReading - sensorReading) > 10) { validSensorReading = sensorReading; } Serial.print ("Old Sensor Reading: "); Serial.println (validSensorReading); Serial.print ("New Sensor Reading: "); Serial.println (sensorReading); sensorResult = map(validSensorReading, wetProbe, dryProbe, 0, 4); // scale analog input to a smaller range for wet to dry Serial.print ("Scaled Sensor Reading 0-4: "); Serial.println (sensorResult); Serial.println (); // display the correct soil moisture level on the display // lower voltages represent more wet levels switch (sensorResult) { case 0: displayTextProbe("Wet"); break; case 1: displayTextProbe("Damp"); break; case 2: displayTextProbe("Moist"); break; case 3: displayTextProbe("Dry"); break; case 4: // same as case 3, due to how map works. displayTextProbe("Dry"); break; } delay(500); } void displayTextProbe(const char * sensorDisplay) { display.setTextSize(2); display.setTextColor(WHITE); display.setCursor(0, 0); display.clearDisplay(); display.println("Soil: "); display.println(sensorDisplay); display.display(); delay(1); }
