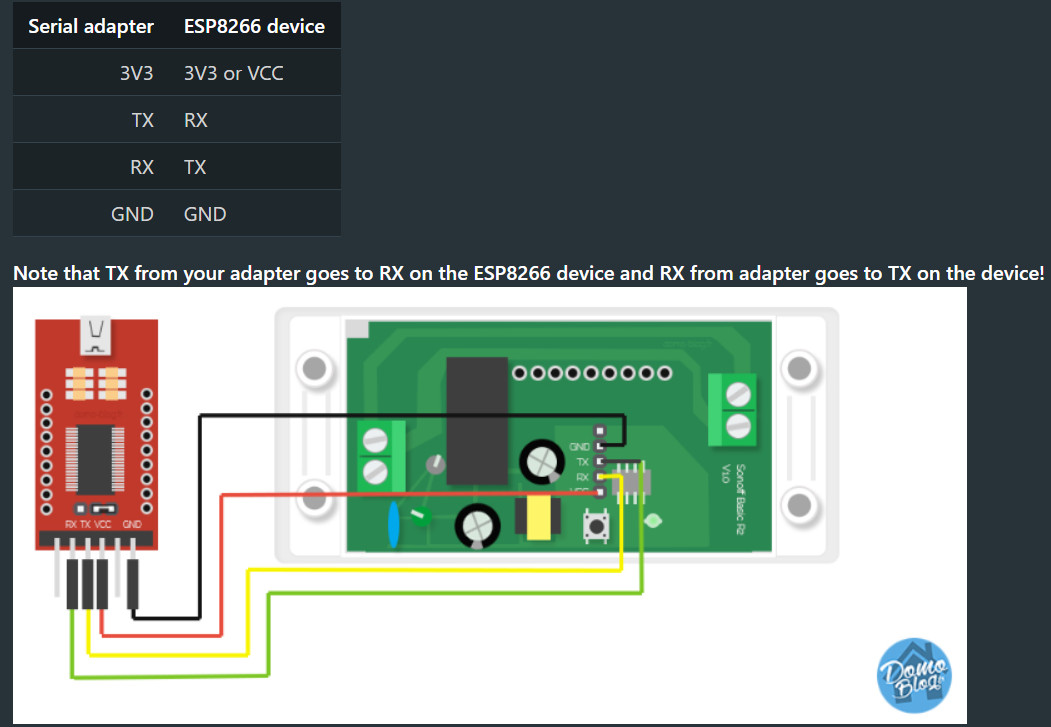

sonoff_ftdi_wiring

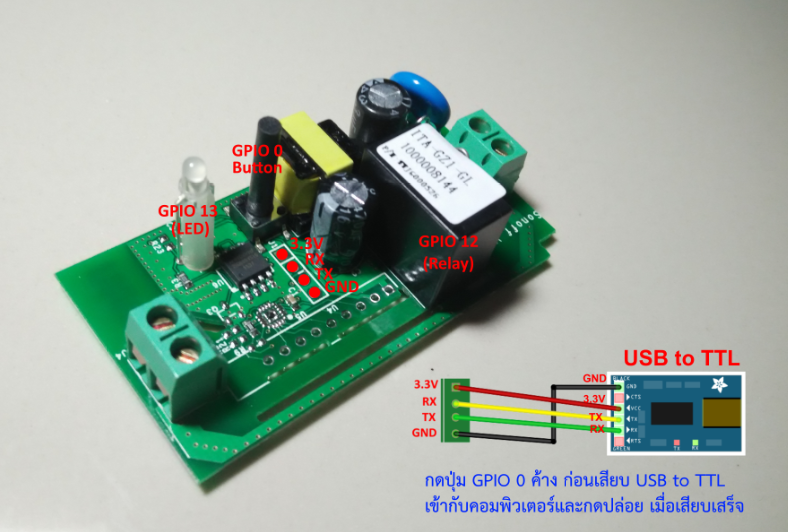

To put the ESP chip into programming mode, remove the Vcc pin, press and hold the pushbutton and while the button is held down plug the Vcc pin back in.
