TG XB Enviro

This Arduino based computer was designed to monitor porch temperature, porch heater, outdoor temperature, greenhouse temperature and greenhouse heater. The readings will be sent as a packet via Xbee to Meister 2 for display on a web page. Meister 2 will take care of feeding Pachube as well as the web page serving.

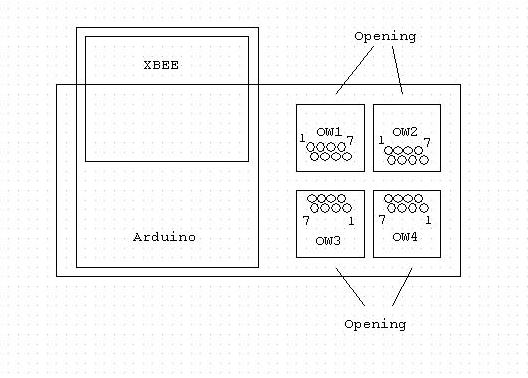

RJ45 inputs on TG XB Enviro:

* OW1 4-Porch temp, 6-porch heater, Gnd = 5, 3
* OW2 4-Greenhouse temp, 6-greenhouse heater. Gnd = 5, 3
* OW3 4-Outdoor temp & humidity, 6-barometer, Gnd = 5, 3
* spare RJ45

Twisted pairs in cat 5 = 4 & 5, 6 &3

Currently OW3 & OW4 notused

Device	Address	data	gnd	OW Jack	Jack Pins	Arduino Bus
Porch Tstat	28A3DB9601000076	blue	blue-wh	OW1	4=D, 5=Gnd	7
Porch Heater	2853C49601000017	blue	blue-wh	OW1	6=D, 3=Gnd	6
GH ambient	28E5A69601000030	blue	blue-wh	OW2	4=D, 5=Gnd	2
GH Heater	28DBB996010000DD	blue	blue-wh	OW2	4=D, 3=Gnd	3
DHT hum & temp			-	OW3	6=D, 3=Gnd	4

Terminal strip 1

Source			Destination
Heat Tstat brown	O	O	Furnace brown
Heat Tstat orange	O	O	Furnace orange
Heat Tstat OW Data	O	O	Arduino OW2-4 blue
Heat Tstat OW gnd	O	O	Arduino OW2-5 blue/wh
GH Flue OW Data	O	O	Arduino OW2-6 green
GH Flue OW gnd	O	O	Arduino OW2-3 green/wh

Hobby Boards One Wire wiring standard

Note: for reference purposes only

RJ45 jack pin numbers:

pin 1 = power return
pin 2 = 5V regulated
Pin 3 = power return
pin 4 = DQ (data)
pin 5 = 1 wire return (GND)
pin 6 = unconnected
pin 7 = unregulated 12v
pin 8 = power return
