Xbee Wireless Addressing
This is a table of address assignments on Downing as well as some notes on address experimenting in order to better understand the purpose of each address field.
The following table shows the results of the programmer address changes:
| DH | DL | MY | Result |
| 0 | 1 | 0 | Xmit reset, read results |
| 0 | 2 | 0 | No reset sent, data read normal |
| 0 | 1 | 2 | Send xmit, can't receive |
On the programmer:
DH, Dl are for transmitting
MY for receiving
Summary: The programmer has address 0 (the MY). The target, Wolfie in this case, has DL 1. Pan ID is 1234.

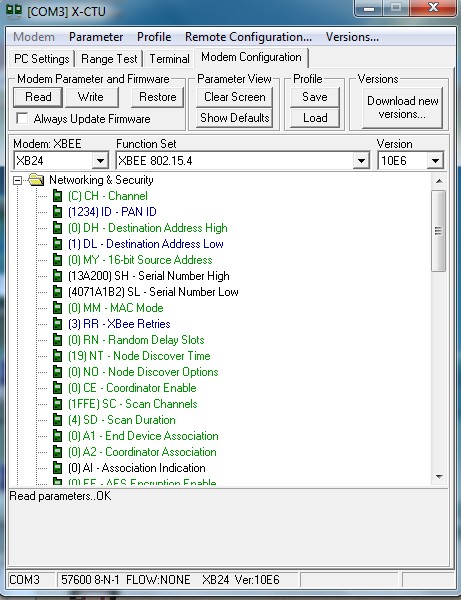

The XCTU screen for the programmer:
